8x8 Video Router by FreakShow - DC powered - Totally portable

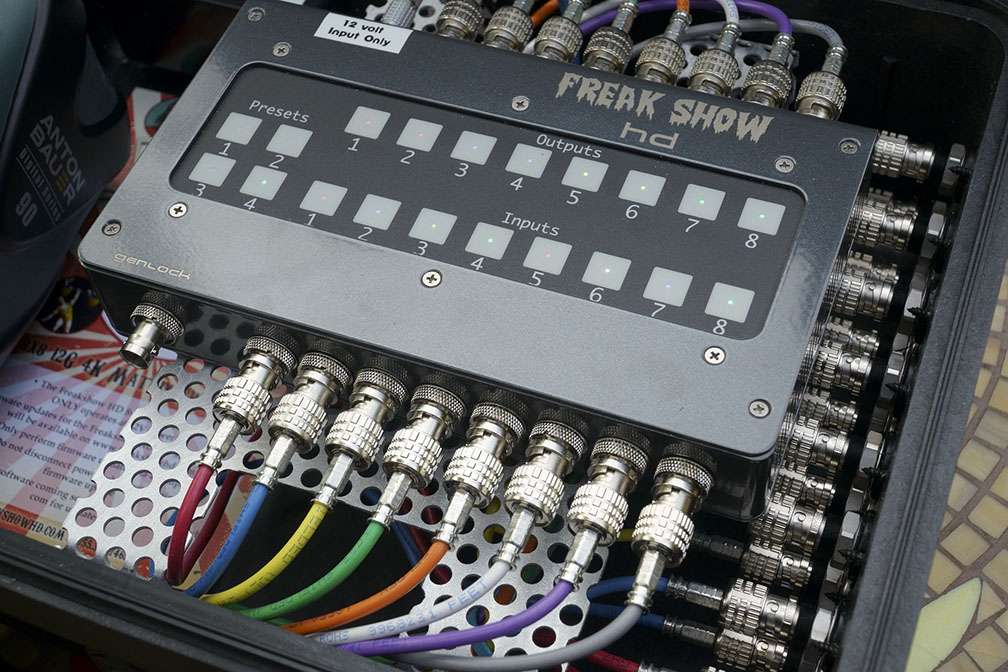

Exceed your need for robust signal flexibility with Freakshow HD’s new 12G 4K 8x8 Matrix Switcher. This production powerhouse provides both the versatility and the bullet proof build required for today’s most challenging locations. Controlled by either the top mounted touch screen or the integrated browser API, the 8x8 provides maximum functionality and user friendly ergonomics. A compliment of 8 12Gb 4K inputs and reclocked outputs ensures that Freakshow’s newest offering exceeds all of your video switching and distribution needs.

1x Sync Input

8x8 Matrix Switching

Interactive touch screen

Web interface compatible with all browsers

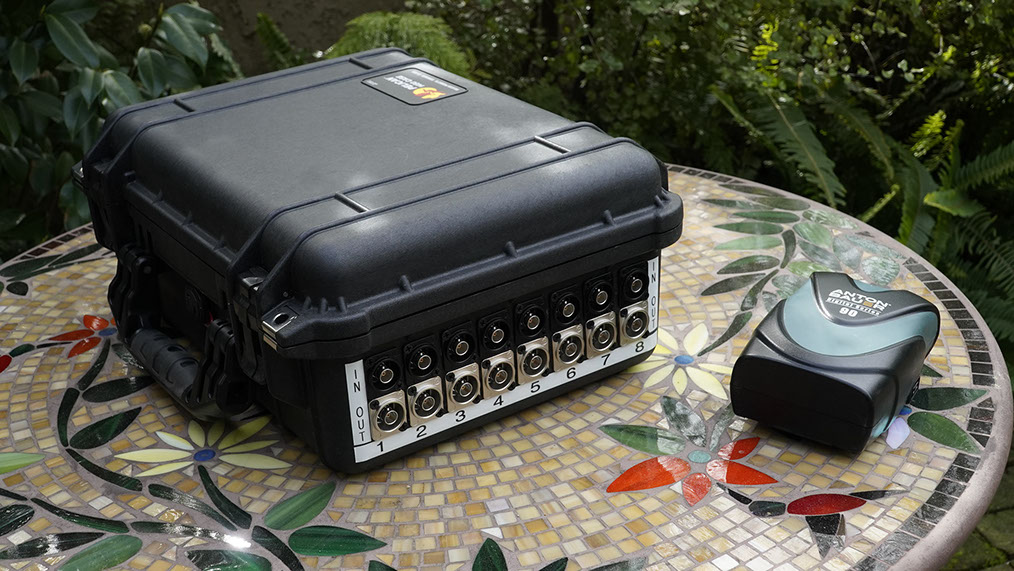

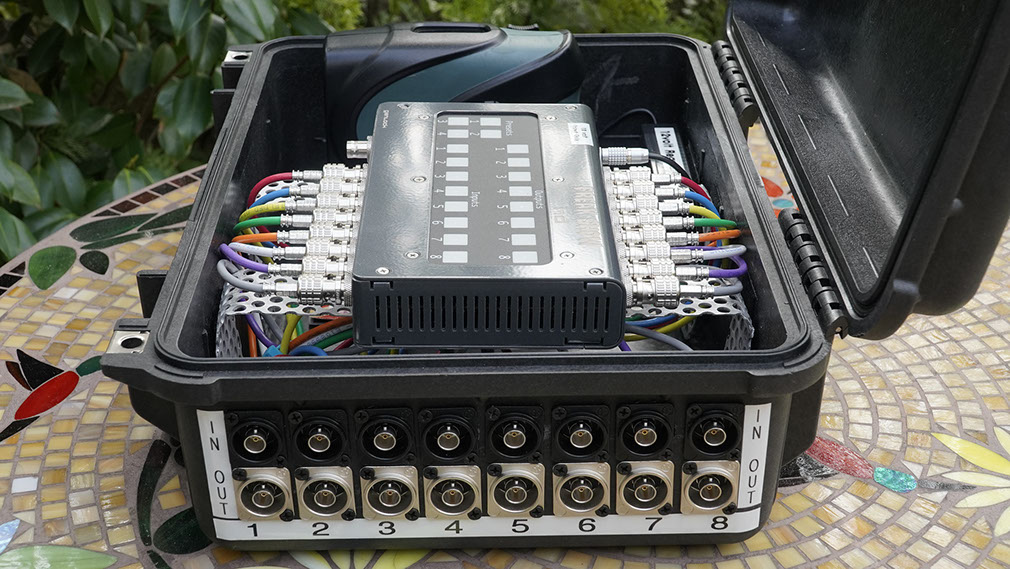

The  custom Pelican case provides all day battery power, color coded cabling, 12v power conditioning, and robust weatherprotection.  The complete customized kit by Ocean Video is priced at $2,295.





Email us at: info AT oceanvideo DOT com •   Copyright 2021 - Ocean Video

Technical Details: Video Formats: 4K 12Gb-SDI, Ultra 4K 6Gb-SDI, 3Gb-SDI, 1.5Gb-SDI, 270Mb-SDI. Meets and exceeds SMPTE-424, SMTPE-292, SMPTE-259 Video Inputs: 8x 12Gb/ 6Gb/ 1.5Gb/ 270Mb - Auto-selectable SDI BNCs Video Outputs: 8x 12Gb/ 6Gb/ 1.5Gb/ 270Mb - Auto-selectable SDI BNCs Battery power option available in Gold Mount style and V-Lock Style. (Battery not included) 12 volt AC power supply included The complete customized kit by Ocean Video is priced at $2,295.
